Microgrid Technology Research and Demonstration

• News: Review and progress meeting with project partner, Dr. Wei Feng from Tsinghua University (TSU) on 17th July 2017.



• News: Mr. Emilio J. Palacios attended the 2017 IEEE 26th International Symposium on Industrial Electronics. He has presented the paper Smart Metering Systems for Microgrids. See his presentation at the end of this website.


• Review and progress meeting with project partners, Associate Prof. Kai Sun and Dr. Wei Feng from Tsinghua University on 11th October 2016.

Older news

This Sino-Danish project deals with research, development and demonstration of a full-scale microgrid. The work is carrying out by two highly rated Universities, Aalborg University (Denmark) and Tsinghua University (China), in cooperation with Kamstrup A/S, leader of smartmeters and smargrid ready components in Denmark and the company Shanghai Solar Energy Science & Technology Co. Ltd, which is topping a photovoltaics and power electronics market in China.

The objective of this project is to develop a demonstrative, research-oriented platform, which aims to ease the integration of Distributed Generation (DG) units, hierarchical and multilevel control strategies, and multiple Microgrid configurations with the help of standard-based communication technology, resulting in a set of complete microgrid solutions.

The proposed solutions will facilitate planning and operational analyses. Robust stability and power quality by the proper control of the power electronics interfaces and the integration of advanced metering infrastructure (AMI) and smart-grid ready communication technologies will be considered as well. The project will serve to service and support innovation processes in companies and research programs within the identified technology areas and clusters based on two levels:

1. System level: Developing, testing and assessment of the microgrids performance, including real-time optimization, control design and monitoring technologies.

2. Component level: Developing, testing and validating the performance of individual technology components in an integrated energy system perspective.

The plan of this project is structured into 5 frameworks:

1. Microgrid design
2. Control and Power Quality
3. Communication and SCADA
4. Energy management system
5. Microgrid test and validation

AMI and EMS Implementation in Microgrid Lab

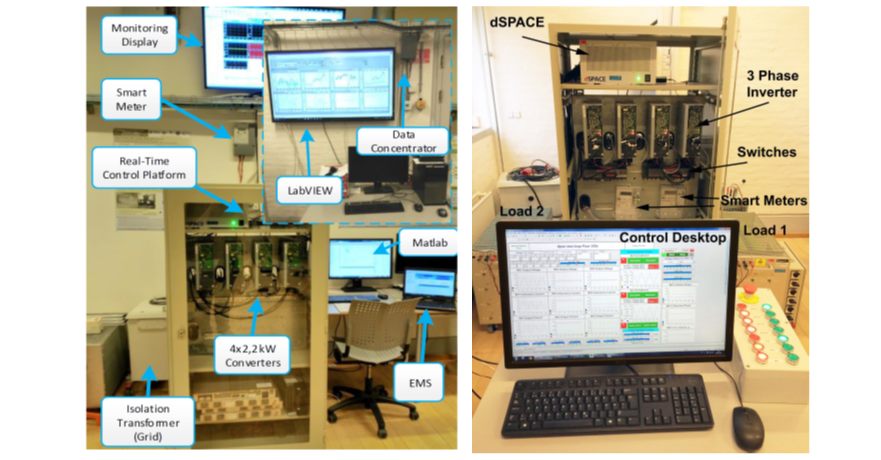

The AMI system in AAU Lab is formed by several smart meters installed in lab setups, a data concentrator, a database system, and a user interface developed in LabVIEW. In addition, an EMS is being developed to perform energy optimization tasks by using the information provided by the AMI. Several parameters are measured by the meters such as active reactive powers, THD, unbalance factor, sags, swells, etc.

AMI and EMS in AAU Microgrid Laboratory

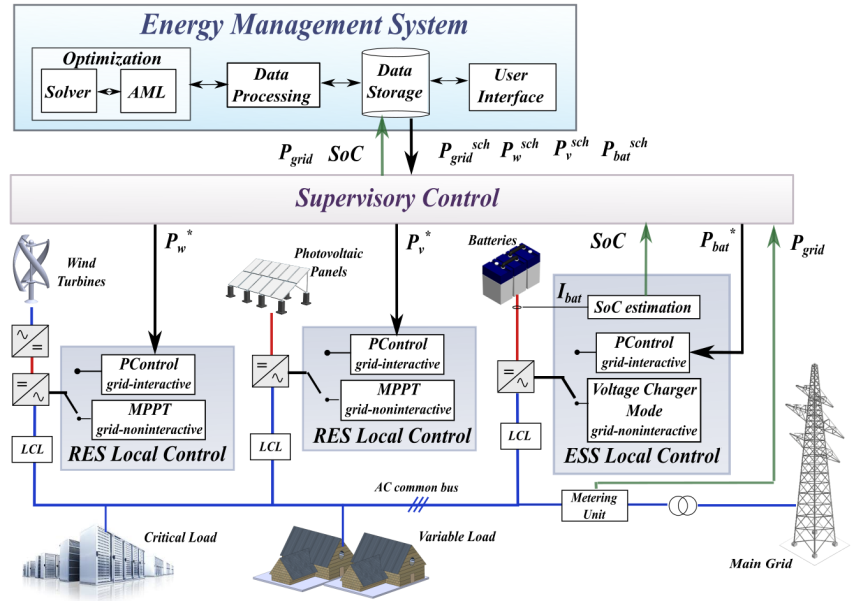

In order to emulate the microgrid site installed in Shanghai (see DEMONSTRATION section below), the following model has been implemented in the laboratory. The power references for the supervisory control are provided by the Energy Management System which is composed of four modules, Optimization, Data Processing, User Interface, and Data Storage.
The optimization model is implemented in the module Optimization by means of an Algebraic Modeling Language (AML) that automatically translates the problem so that the Solver can understand it and solve the problem. The input and output data is structured by the Data Processing model and stored in the Data Storage which is a collection of files accessible by the User Interface and Supervisory Control.

More details can be found here.

Integration of EMS with Microgrid controllers

During this project a 200 kW hybrid PV-wind-battery microgrid site is installed and tested in Shanghai by both Tsinghua University and Shanghai Solar Energy Science & Technology Co. Ltd. in collaboration with Kamstrup A/S. At the same time in Aalborg University research will be done in the microgrid research laboratories during the project period.

                  the Hybrid Photovoltaic/Wind Turbine/Battery Microgrid

The electrical energy generated by the demonstration is consumed locally. The total capacity of demonstration is 206.08kW, which consist of PV system with 136.08kWp, wind turbine system with 20kW and ESS system with 50kW. The DGs are managed by EMS system. The PV penal array of demonstration is installed on the roof of plant B in HT-Shanghai Solar.

The updated satellite picture of PV array on the roof of plant B in HT-Shanghai Solar

                                rooftop building PV installation

                                          2x10kW Wind Turbine System

Publications derived from the latest research

Journals

• Smart Transactive Energy Framework in grid-connected Multiple Home Microgrids Under Independent and Coalition Operations. Marzband, Mousa; Azarinejadian, Fatemeh; Savaghebi, Mehdi; Pouresmaeil, Edris; Guerrero, Josep M.; Lightbody, Gordon. In: Renewable Energy, Vol. 126, 10.2018, p. 95-106.
• Capacitor Current Feedback-Based Active Resonance Damping Strategies for Digitally-Controlled LCL-Filtered Grid-Connected Inverters, Lorzadeh, I., Askarian Abyaneh, H., Savaghebi, M., Bakhshai, A., Guerrero, J. M., Energies, 2016.
• Mixed-Integer-Linear-Programming based Energy Management System for Hybrid PV-wind-battery Microgrids: Modeling, Design and Experimental Verification, A. C. Luna; N. L. Diaz Aldana; M. Graells; J. C. Vasquez; J. M. Guerrero, in IEEE Transactions on Power Electronics , vol. 32, no. 4, pp.2769-2783, April 2017.
• Flexible System Integration and Advanced Hierarchical Control Architectures in the Microgrid Research Laboratory of Aalborg University, L. Meng, Meng, Lexuan; Hernández, Adriana Carolina Luna; Diaz, Enrique Rodriguez; Sun, Bo; Dragicevic, Tomislav; Savaghebi, Mehdi; Quintero, Juan Carlos Vasquez; Guerrero, Josep M.; Graells, Moises; Andrade, Fabio, in IEEE Transactions on Industry Applications, vol. 52, no. 2, pp. 1736-1749, March-April 2016.
• Low-Voltage Ride-Through Operation of Power Converters in Grid-Interactive Microgrids by Using Negative-Sequence Droop Control, Zhao, Xin; Guerrero, Josep M.; Savaghebi, Mehdi; Wu, Xiaohua; Sun, Kai. IEEE Transactions on Power Electronics, vol. 32, no. 4, pp.3128-3142, April 2017.
• Energy Management System based on Fuzzy Fractional Order PID Controller for Transient Stability Improvement in Microgrids with Energy Storage, Moafi, Milad, Marzband, Mousa,Savaghebi, Mehdi, Guerrero, Josep M,.International Transactions on Electrical Energy Systems, 2050-7038, 2016.
• Tertiary Control of Voltage Unbalance Compensation for Optimal Power Quality in Islanded Microgrids, L. Meng, F. Tang, M. Savaghebi, J. C. Vasquez, and J. M. Guerrero, IEEE Transactions on Energy Conversion, vol. 29, no. 4, pp. 802-815, Dec. 2014.
• Distributed Voltage Unbalance Compensation in Islanded Microgrids by Using Dynamic Consensus-Algorithm,L. Meng, X. Zhao, F. Tang, M. Savaghebi, T. Dragicevic, J. C. Vasquez, and J. M. Guerrero, IEEE Transactions on Power Electronic, vol. 31, no. 1, pp.827-838, January 2016.
• An Optimal Energy Management System for Islanded Microgrids based on Multi-Period Artificial Bee Colony Combined with Markov Chain, M. Marzband, F. Azarinejadian, M. Savaghebi, , and J. M. Guerrero, IEEE Systems Journal, vol. 11, no. 3, pp.1712-1722, Sept. 2017, DOI: 10.1109/JSYST.2015.2422253
• Autonomous Active Power Control for Islanded AC Microgrids With Photovoltaic Generation and Energy Storage System, D. Wu, F. Tang, T. Dragicevic, J. C. Vasquez, and J. M. Guerrero, IEEE Transactions on Energy Conversion, vol.29, no.4, pp.882-892, Dec. 2014.
• A Control Architecture to Coordinate Renewable Energy Sources and Energy Storage Systems in Islanded Microgrids, D. Wu, F. Tang, T. Dragicevic, J. C. Vasquez, and J. M. Guerrero, IEEE Transactions on Smart Grid,  vol. 6, no. 3, pp. 1156-1166, May 2015.
• Distributed Smart Decision-Making for a Multi-Microgrid System Based on a Hierarchical Interactive Architecture, M. Marzband, N. Parhizi, M. Savaghebi, and J. M. Guerrero, IEEE Transactions on Energy Conversion, 2016.
• A Control Architecture to Coordinate Distributed Generators and Active Power Filters Coexisting in a Microgrid, M. M. Hashempour, M. Savaghebi, Juan C. Vasquez, and Josep M. Guerrero, IEEE Transactions on Smart Grid, vol. 7, no. 5, pp.2325-2336, September 2016.

Conferences

• Generation and Demand Scheduling for a Grid-Connected Hybrid Microgrid Considering Price-based Incentives, A. C. Luna, N. L. Diaz, M. Savaghebi, W. Feng, K. Sun, J. C. Vasquez, and J. M. Guerrero, 43rd Annual Conference of the IEEE Industrial Electronics Society (IECON 2017), 29 October-1 November 2017, Beijing, China.
• Using Smart Meters Data for Energy Management Operations and Power Quality Monitoring in a Microgrid, E. J. Palacios-Garcia, E. R. Diaz, A. Anvari-Moghaddam, M. Savaghebi, J. C. Vasquez, J. M. Guerrero, and A. Moreno-Munoz, 26th IEEE International Symposium on Industrial Electronics (ISIE 2017), 19-21 June 2017, Edinburgh, UK.
• A Dynamic Consensus Algorithm based Hierarchical Control for Low Voltage Ride-Through Operation of Power Converters in Grid-Connected Microgrids, X. Zhao, L. Meng, M. Savaghebi, J. C. Vasquez, J. M. Guerrero and X. Wu, 42nd Ann. Conf. of the IEEE Ind. Electron. Society (IECON), 24-27 Oct. 2016, Florence, Italy.
• Voltage Unbalance and Harmonic Compensation in Microgrids by Cooperation of Distributed Generators and Active Power Filters, M. M. Hashempour, M. Savaghebi, J. C. Vasquez, and J. M. Guerrero, 7th Power Electronics, Drive Systems and Technologies Conference (PEDSTC 2016), 16-18 Feb. 2016, Tehran, Iran.
• Optimal Power Scheduling for an Islanded Hybrid Microgrid, A. Luna, N. Diaz, M. Savaghebi, and J. M. Guerrero, 8th International Power Electronics and Motion Control Conference - ECCE Asia (IPEMC 2016-ECCE Asia), 22-25 May 2016, Hefei, China
• An Embedded Voltage Harmonic Compensation Strategy for Current-Controlled DG Interfacing Converters, X. Zhao, L. Meng, C. Xie, M. Savaghebi, J. C. Vasquez, J. M. Guerrero and X. Wu, IEEE Energy Conv. Cong. and Expo, (ECCE 2016), 18-22 Sept. 2016, Milwaukee, US.
• Hierarchical Coordinated Control of Distributed Generators and Active Power Filters to Enhance Power Quality of Microgrids, M. Savaghebi, M. M. Hashempour, and J. M. Guerrero, 55th Int. Scientific Conf. of Riga Tech. Uni. on Power and Elec. Eng. (RTUCON), 14-17 October 2014, Riga, Latvia.
• Microgrid Central Controller Development and Hierarchical Control Implementation in the Intelligent MicroGrid Lab of Aalborg University, L. Meng, M. Savaghebi, F. Andrade, J. C. Vasquez, J. M. Guerrero, and M. Graells, Applied Power Electron. Conf. and Expo. (APEC), 15-19 March 2015, Charlotte, NC, USA.
• Fuzzy Droop Control Loops Adjustment for Stored Energy Balance in Distributed Energy Storage System, N. Diaz, D. Wu, T. Dragicevic, J. C. Vasquez and J. M. Guerrero, IEEE ECCE-ASIA, 1-5 June 2015,  Seoul, Korea.
• Economic Power Dispatch of Distributed Generators in a Grid-Connected Microgrid, A. C. Luna, N. Diaz, F. Andrade, M. Graells, J. M. Guerrero and J. C. Vasquez,  IEEE ECCE-ASIA, 1-5 June 2015,  Seoul, Korea.
• Coordinated Secondary Control for Balanced Discharge Rate of Energy Storage System in Islanded Microgrids. / Guan, Yajuan; Guerrero, Josep M.; Quintero, Juan Carlos Vasquez. Proceedings of the 2015 9th International Conference on Power Electronics and ECCE Asia (ICPE-ECCE Asia). IEEE Press, 2015. p. 475 - 481.
• A Direct Voltage Unbalance Compensation Strategy for Islanded Microgrids. / Zhao, Xin; Wu, Xiaohua; Meng, Lexuan; Guerrero, Josep M.; Vasquez, Juan Carlos. Proceedings of the 2015 IEEE Applied Power Electronics Conference and Exposition (APEC). IEEE Press, 2015. p. 3252 - 3259.
• Small-Signal Modeling, Analysis and Testing of Parallel Three-Phase-Inverters with A Novel Autonomous Current Sharing Controller. / Guan, Yajuan; Quintero, Juan Carlos Vasquez; Guerrero, Josep M.; Coelho, Ernane A. A. Proceedings of the 30th Annual IEEE Applied Power Electronics Conference and Exposition, APEC 2015. IEEE Press, 2015. p. 571 - 578
• Autonomous Active and Reactive Power Distribution Strategy in Islanded Microgrids. / Wu, Dan; Tang, Fen; Guerrero, Josep M.; Vasquez, Juan Carlos; Chen, Guoliang; Sun, Libing. Proceedings of the 29th Annual IEEE Applied Power Electronics Conference and Exposition, APEC 2014. IEEE Press, 2014. p. 2126-2131.
• Autonomous Control of Distributed Generation and Storage to Coordinate P/Q Sharing in Islanded Microgrids - An Approach beyond Droop Control. / Wu, Dan; Tang, Fen; Guerrero, Josep M.; Vasquez, Juan Carlos.Proceedings of the 2014 IEEE International Energy Conference (ENERGYCON). IEEE Press, 2014. p. 983-988.
• Control and Analysis of Droop and Reverse Droop Controllers for Distributed Generations. / Wu, Dan; Tang, Fen; Vasquez, Juan Carlos; Guerrero, Josep M. Proceedings of the 11th International Multiconference on Systems, Signals & Devices, SDD 2014. IEEE Press, 2014.
• A Simple Autonomous Current-Sharing Control Strategy for Fast Dynamic Response of Parallel Inverters in Islanded Microgrids. / Guan, Yajuan; Vasquez, Juan Carlos; Guerrero, Josep M. Proceedings of the 2014 IEEE International Energy Conference (ENERGYCON). IEEE Press, 2014. p. 182-188.
• Online Energy Management System for Distributed Generators in a Grid-Connected Microgrid. / Hernández, Adriana Carolina Luna; Aldana, Nelson Leonardo Diaz; Graells, Moises; Quintero, Juan Carlos Vasquez; Guerrero, Josep M. Proceedings of the 2015 IEEE Energy Conversion Congress and Exposition (ECCE). IEEE Press, 2015. p. 4616 - 4623.
• A Hierarchical Control Scheme for Reactive Power and Harmonic Current Sharing in Islanded Microgrids. / Lorzadeh, Iman ; Firoozabadi, Mehdi Savaghebi; Askarian Abyaneh, Hossein; Guerrero, Josep M. Proceedings of the 17th Conference on Power Electronics and Applications, EPE’15-ECCE Europe. Geneva, Switzerland : IEEE Press, 2015.
• Dynamic Consensus Algorithm based Distributed Voltage Harmonic Compensation in Islanded Microgrids. / Meng, Lexuan; Tang, Fen; Firoozabadi, Mehdi Savaghebi; Dragicevic, Tomislav; Quintero, Juan Carlos Vasquez; Guerrero, Josep M. Proceedings of the 2015 17th European Conference on Power Electronics and Applications (EPE'15 ECCE-Europe). IEEE Press, 2015.
• Adaptive Virtual Impedance Scheme for Selective Compensation of Voltage Unbalance and Harmonics in Microgrids. / Savaghebi, Mehdi; Shafiee, Qobad; Vasquez, Juan Carlos; Guerrero, Josep M. Proceedings of the IEEE Power & Energy Society General Meeting, PES GM 2015. IEEE, 2015.
• Dynamic Consensus Algorithm based Distributed Unbalance Compensation in Islanded Microgrids. / Meng, Lexuan; Zhao, Xin; Firoozabadi, Mehdi Savaghebi; Dragicevic, Tomislav; Quintero, Juan Carlos Vasquez; Guerrero, Josep M.; Tang, Fen. Proceedings of the IEEE Power & Energy Society General Meeting, PES GM 2015. IEEE Press, 2015.
• Hierarchical Control for Voltage Harmonics Compensation in Multi-Area Microgrids. / Hashempour, Mohammad M.; Firoozabadi, Mehdi Savaghebi; Quintero, Juan Carlos Vasquez; Guerrero, Josep M. Proceedings of the 2015 IEEE 10th International Symposium on Diagnostics for Electrical Machines, Power Electronics and Drives (SDEMPED). IEEE Press, 2015. p. 415 - 420
• Active Damping Techniques for LCL-Filtered Inverters-Based Microgrids. / Lorzadeh, Iman ; Firoozabadi, Mehdi Savaghebi; Askarian Abyaneh, Hossein; Guerrero, Josep M. Proceedings of the 2015 IEEE 10th International Symposium on Diagnostics for Electrical Machines, Power Electronics and Drives (SDEMPED). IEEE Press, 2015. p. 408 - 414
• Control of a Multi-Functional Inverter for Grid Integration of PV and Battery Energy Storage System. / Mousazadeh, Seyyed Yousef ; Li, Chendan; Beirami, A.; Jalilian, Alireza; Firoozabadi, Mehdi Savaghebi; Guerrero, Josep M. IEEE 10th International Symposium on Diagnostics for Electrical Machines, Power Electronics and Drives. 2015.
• Voltage Harmonics Monitoring in a Microgrid Based on Advanced Metering Infrastructure (AMI). / Firoozabadi, Mehdi Savaghebi; Guan, Yajuan; Quintero, Juan Carlos Vasquez; Guerrero, Josep M.; Nielsen, Carsten. Seminario Anual de Automática, Electrónica Industrial e Instrumentación 2015 (SAAEI’15). 2015.
• Negative Sequence Droop Method based Hierarchical Control for Low Voltage Ride-Through in Grid-Interactive Microgrids. / Zhao, Xin; Firoozabadi, Mehdi Savaghebi; Quintero, Juan Carlos Vasquez; Guerrero, Josep M.; Sun, Kai; Wu, Xiaohua; Chen, Guoliang; Sun, Libing. Proceedings of the 2015 IEEE Energy Conversion Congress and Exposition (ECCE). IEEE Press, 2015. p. 6896 - 6903.
• Advanced Smart Metering Infrastructure for Future Smart Homes. / Diaz, Enrique Rodriguez; Palacios-Garcia, Emilio; Firoozabadi, Mehdi Savaghebi; Quintero, Juan Carlos Vasquez; Guerrero, Josep M.; Moreno-Munoz, Antonio. Proceedings of the 5th IEEE International Conference on Consumer Electronics. IEEE Press, 2015.
• Smart Metering System for Microgrids. / Palacios-Garcia, Emilio; Guan, Yajuan; Savaghebi, Mehdi; Quintero, Juan Carlos Vasquez; Guerrero, Josep M.; Moreno-Munoz, Antonio; Ipsen, Brian S. IECON 2015, Yokohama, november 2015. IEEE Press, 2015.
• Distributed Low Voltage Ride-Through Operation of Power Converters in Grid-Connected Microgrids under Voltage Sags, X. Zhao, L. Meng, T. Dragicevic,  M. Savaghebi, J. M. Guerrero, J. C. Vasquez, and X. Wu, 41st Ann. Conf. of the IEEE Ind. Electron. Society (IECON), 9-12 Nov. 2015, Yokohama, Japan.
• Optimal Power Scheduling for a Grid-Connected Hybrid PV-Wind-Battery Microgrid System, A. Luna, N. Diaz, M. Savaghebi, K. Sun, G. Chen, L. Sun, J. C. Vasquez, and J. M. Guerrero, Applied Power Electron. Conf. and Expo. (APEC), 20-24 March 2016, California, USA.
• Development and Integration of a HEMS with an Advanced Smart Metering Infrastructure, E. R. Diaz, E. J. Palacios-Garcia, M. Savaghebi, J. C. Vasquez, and J. M. Guerrero, 34th Int. Conf. on Consumer Electron. (ICCE), 8-11 Jan. 2016, Las Vegas, USA.

Related link: Microgrid Technology Research and Demonstration

EUDP Sino-Danish Project-Presentation given Prof. by Josep Guerrero

Smart Metering Systems for Microgrids - Presentation by Dr. Mehdi Savaghebi

Smart Metering Systems for Microgrids - Presentation by Emilio J. Palacios

Project Manager

Professor Josep M. Guerrero
Direct phone: +45 9240 9726
E-mail: joz@et.aau.dk

Participants

Assoc. Professor Mehdi Savaghebi
Professor Juan C. Vasquez

COLLABORATORS

Emilio J. Palacios
Enrique Rodriguez Diaz
Adriana C. Luna

The project is granted by EUDP - Energiteknologisk Udvikling og Demonstration and the Ministry of Science and Technology of the People’s Republic of China
